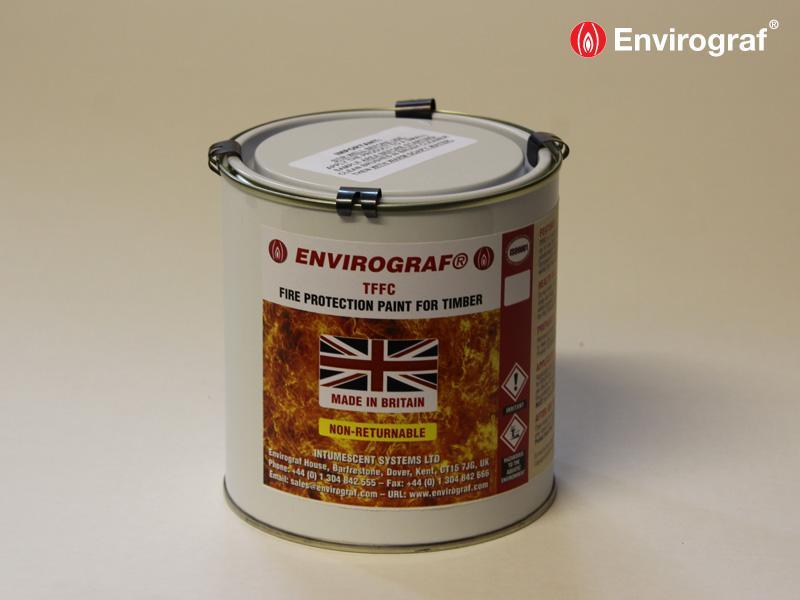

Timber Frame Fire Coat

Description

A specially-developed water-based (water-resistant when dry) product for use in timber-framed building projects to give fire protection on timber construction elements. TFFC has a smooth finish, available in white or colours. TFFC dries into a robust, weatherproof coating which is ideal for open construction site conditions. Application is by brush, roller, or spray. One coat at 12m²/litre is required for Class 0/Class 1 and European SBI. One coat at 6m²/litre is required for 30 minutes fire protection, and two coats at 8m²/litre per coat are required for 60 minutes fire protection.

ADVANTAGES

• Can be easily applied by brush, roller or spray
• Provides Class 0/Class 1, 60 minutes fire protection and SBI
• Ideal for use on load-bearing timber

FIRE TEST PERFORMANCE

Tested to BS 476 Part 20 (1987) on a load-bearing floor including open joists, achieving a one hour fire rating.

Tested to EN1364-1-1999 in a full rig simulating a complete side of a typical house in softwood, shiplap timber measuring between 19mm to 12mm, achieving up to 60 minutes fire protection.

APPLICATION INSTRUCTIONS

Can be applied using brush, roller or spray. One coat at 12m² per litre is required for Class 0/Class 1 and European SBI.  One coat at 6m² per litre is required for 30 minutes fire protection.  Two coats at 8m² per litre per coat is required for 60 minutes fire protection.  TFFC dries in one hour.  TFFC should be applied in dry conditions.

DOWNLOADS

Please use the links below to download relevant information as PDF documents:

Technical Information

N/A

Application Instructions

N/A

COSHH Data

HS145-TFFC-11-2012

ORDER REFERENCES
