Stained Glass Protector

Description

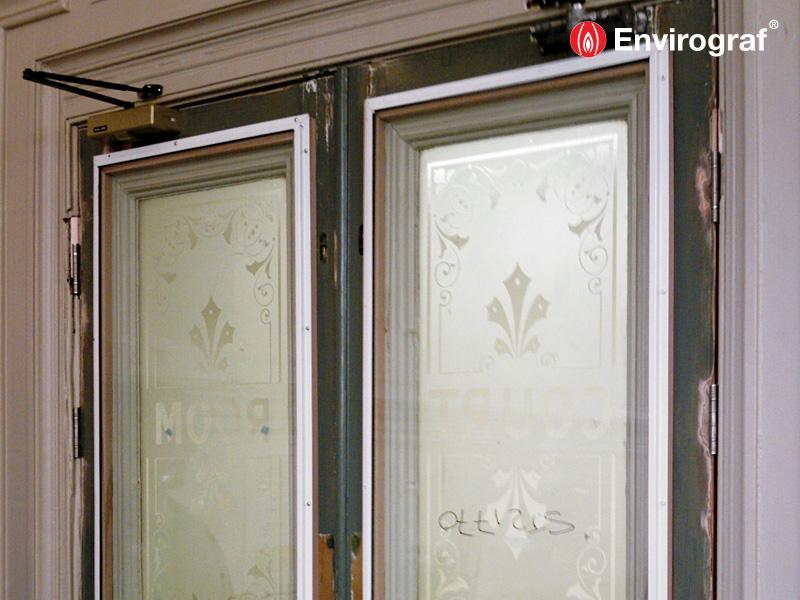

This is a metal trim in standard finishes of brown or white. Other colours are available. The trim is complete with pre-fixed intumescent seals and is applied to the framed area with screws, which are supplied. The trim is made to hold wired or clear fire glass behind existing decorative glass, thereby giving half hour or one hour fire protection and allowing the decorative glass to remain undisturbed. Supplied in standard 2100mm lengths. Other sizes and finishes made to order.

ADVANTAGES

• The protector rail will hold clear Georgian wire glass, laminated glass or ceramic fire rated glass in front of the decorative glazed panels, giving 30 or 60 minutes protection
• Can also be supplied in curved sections or arches
• Comes in brown or white as standard, but can be made to other colours as required

FIRE TEST PERFORMANCE

N/A

APPLICATION INSTRUCTIONS

Where decorative glass or plain glass windows require 30 minute or 60 minute fire protection, Envirograf® have developed a metal trim to surface mount onto the risk side of the partition or door to take Northern Wired Plain Clear – 6mm – 30 minute glass or Pilkington Clear Wired Glass for 60 minute protection and CGI Glass.  The section as shown below is easily installed. Intumescent A is already fitted to the Stained Glass Protector. Intumescent B needs to be fitted to the opposite side of the glass.

DOWNLOADS

Please use the links below to download relevant information as PDF documents:

Technical Information

TD116-10-2014

Application Instructions

AP116-11-2014

COSHH Data

HS116-10-2014
