Multi Shutter Pipe Cover

From £96.84 to £510.12

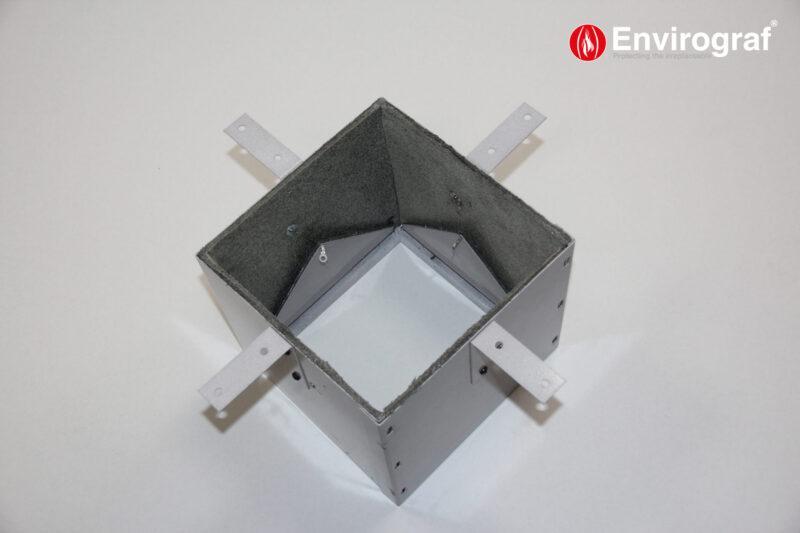

An intumescent box designed for sealing off polypropylene and PVC pipes in ceilings in the event of a fire. (PRODUCT 17)

SKU: PRODUCT 17
Category:

Share on:
  • Description
  • APPLICATION INSTRUCTIONS
  • DOWNLOADS
  • ORDER REFERENCES

Description

A 200mm deep metal cover with thermal-release shutter elements and intumescent liner, designed to seal around polypropylene and PVC pipes (with wall thickness of 1.5mm or more) in ceilings.  Available for surface or recessed mounting, finished in black, brown, grey, or white powder coating.  See new data sheet for more information.



ADVANTAGES

  • Designed to protect ventilation systems
  • For pipes that are 50mm to 400mm in diameter
  • Brackets featured for easy installation



FIRE TEST PERFORMANCE

N/A

APPLICATION INSTRUCTIONS

N/A

DOWNLOADS

Please use the links below to download relevant information as PDF documents:

Technical Information

N/A

Application Instructions

N/A

COSHH Data

N/A

ORDER REFERENCES

REF (SURFACE) EXTERNAL PIPE DIAMETER
MULTI/S/85 85mm
MULTI/S/110 110mm
MULTI/S/127 127mm
MULTI/S/166 166mm
MULTI/S/200 200mm
MULTI/S/225 225mm
MULTI/S/250 250mm
MULTI/S/300 300mm
MULTI/S/325 325mm
MULTI/S/350 350mm
MULTI/S/400 400mm
REF (SURFACE) EXTERNAL PIPE DIAMETER
MULTI/S/85/RE 85mm
MULTI/S/110/RE 110mm
MULTI/S/127/RE 127mm
MULTI/S/166/RE 166mm
MULTI/S/200/RE 200mm
MULTI/S/225/RE 225mm
MULTI/S/250/RE 250mm
MULTI/S/300/RE 300mm
MULTI/S/325/RE 325mm
MULTI/S/350/RE 350mm
MULTI/S/400/RE 400mm
