Intumescent Discs for Cables and Pipes
From £8.42 to £13.51
For sealing around services passing through dry lining, lath and plaster and solid walls. (PRODUCT 10)
| SKU: | PRODUCT 10 |
| Category: | Cables and Pipes Protection |
Share on: |
- Description
- APPLICATION INSTRUCTIONS
- DOWNLOADS
- ORDER REFERENCES
Description

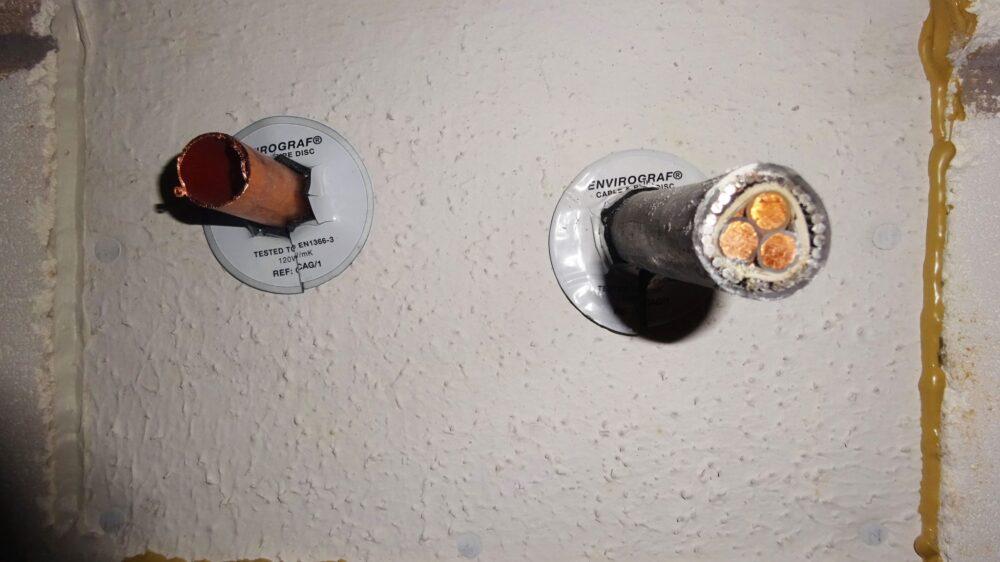

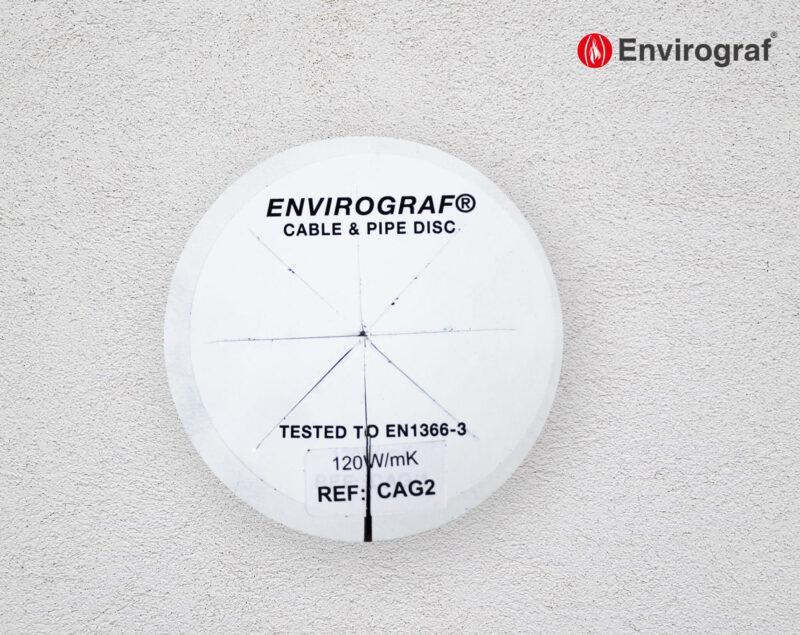

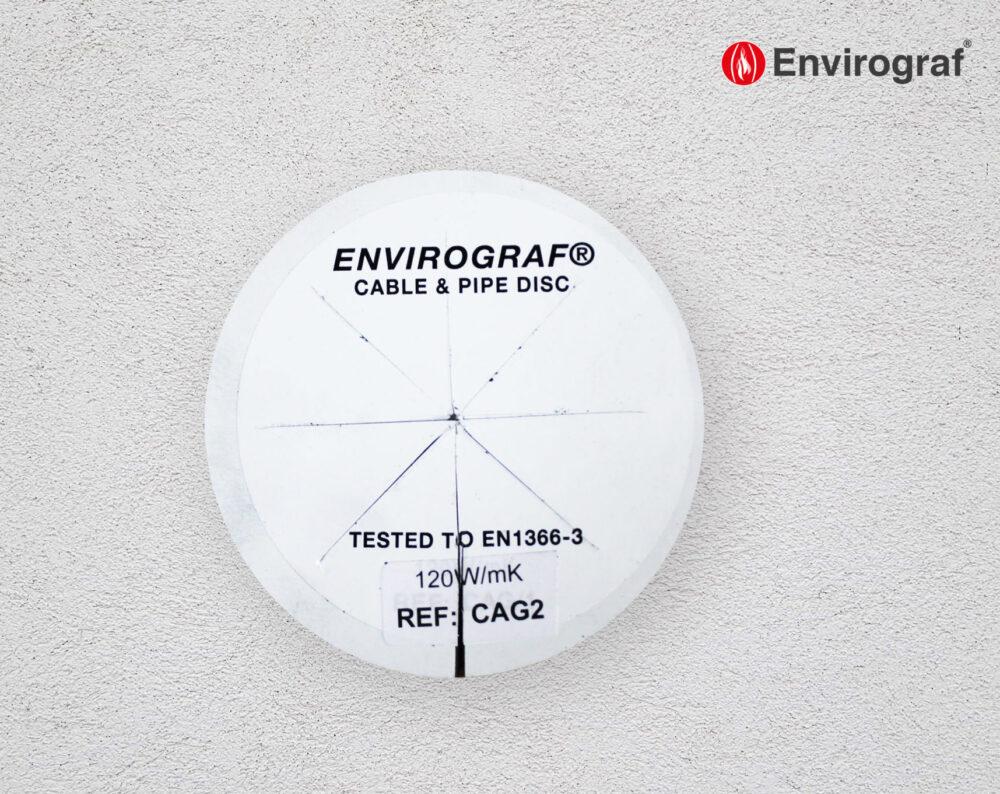

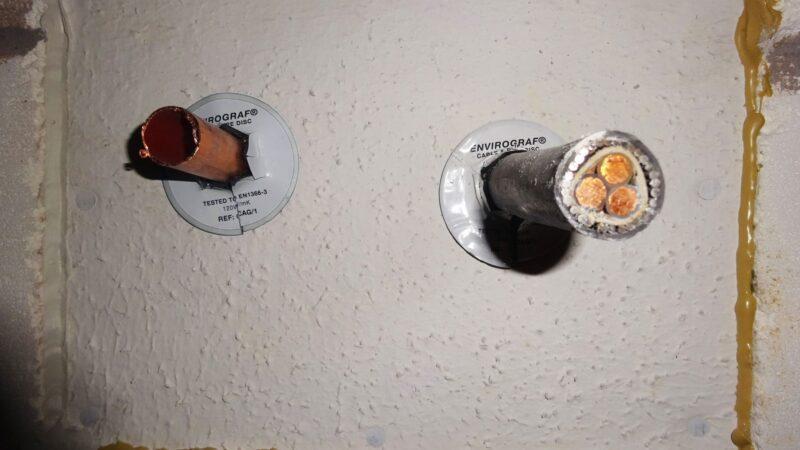

Intumescent discs with short slits radiating from the centre to allow easy fitting around cables and copper/plastic/steel pipes, giving up to two hours of fire protection. Supplied in packs of 12 discs.
ADVANTAGES
N/A
FIRE TEST PERFORMANCE
N/A
APPLICATION INSTRUCTIONS
Peel off adhesive yellow paper. Open up where cut and splay back fins. Wrap around service and press to wall.
DOWNLOADS
Please use the links below to download relevant information as PDF documents:
Technical Information
N/A
Application Instructions
N/A
COSHH Data
ORDER REFERENCES
| REF | DESCRIPTION |
| CAG1 | 65mm diameter for pipes and cables up to 28mm diameter |
| CAG2 | 75mm diameter for pipes and cables up to 39mm diameter |
| CAG3 | 90mm diameter for pipes and cables up to 55mm diameter |
