Fire Break Membrane

Description

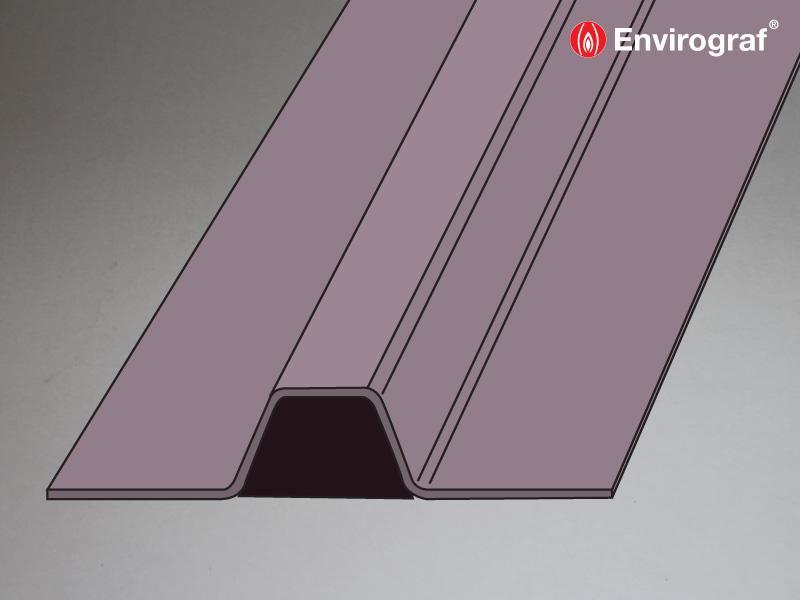

A foil-clad intumescent membrane section, made from a non-porous material, to form a fire break between two roofs of adjoining properties. Unaffected by moisture. For use under roofing tiles and slates. Easily fitted with clout nails to roof trusses.

ADVANTAGES

• This system is waterproof and maintains the integrity of the roof system after installation
• The raised seal section of the membrane is designed to fit directly below all types of roofing profiles
• Tile joins can be made directly above the raised section of the membrane seal, or away from this area
• Reinforced with wire mesh in order to support itself when hanging over a wall

FIRE TEST PERFORMANCE

Tested to BS476 Part 20/22 (1987), achieving an integrity of 72 minutes.

APPLICATION INSTRUCTIONS

The membrane is supplied as a ready-to-install unit. Fit the membrane directly above the firewall structure. Roofing felt is fitted over the blanket section and roofing battens butt to the raised seal section. The raised seal section of the membrane is designed to fit directly below all types of roofing profile. Easily fitted to roof trusses with ordinary clout nails.

DOWNLOADS

Please use the links below to download relevant information as PDF documents:

Technical Information

N/A

Application Instructions

N/A

COSHH Data

N/A

ORDER REFERENCES

Custom Sizes:

Other sizes can be made to order. Please contact our technical team for advice on sizes and pricing.

Please state all the measurements A B C and D as indicated below:
