Enviroburst Fire Suppression Unit

Description

This product is a sealed tubular thermoplastic capsule containing a liquid fire suppressant. When the surrounding environmental temperature reaches 70°C, the capsule releases its fire suppressant to extinguish the fire. Consumer units up to 250mm width will only require EBUl , whereas larger distribution boards will require either EBU2 or EBU3 (see sizes below).

ADVANTAGES

• Could you be without your consumer unit, distribution or switch fuse & board for days or hours?

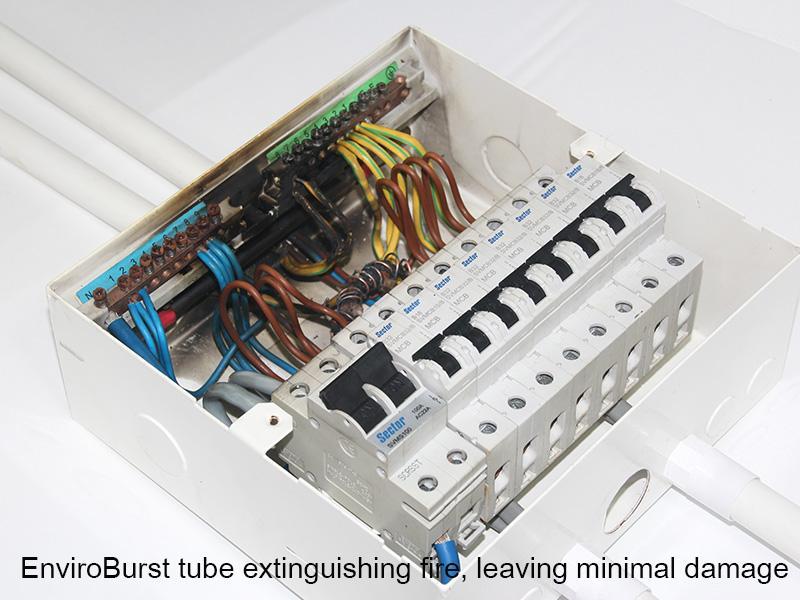

• EnviroBurst can immediately put out the fire, causing virtually no damage

FIRE TEST PERFORMANCE

N/A

APPLICATION INSTRUCTIONS

The tube units are supplied with fixing clips, nuts and bolts. Fixings should be placed about 30-40 mm from both ends.

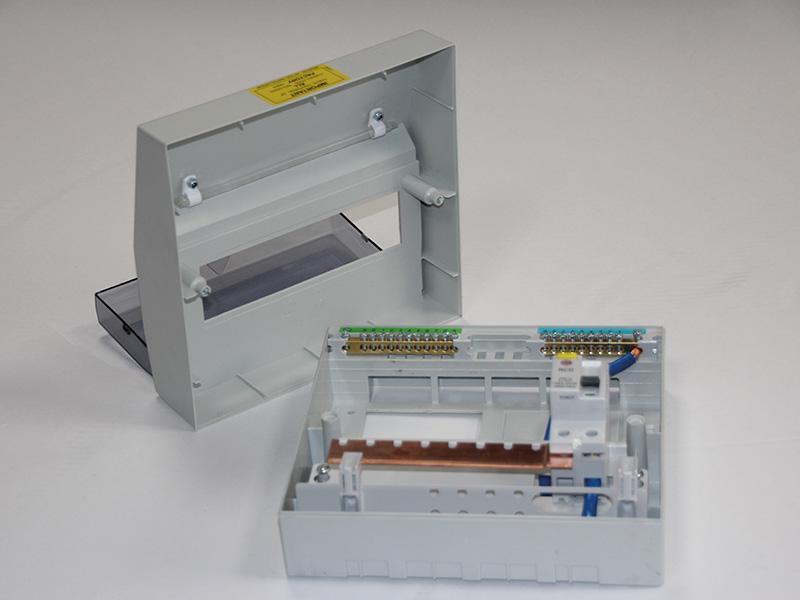

Take off the lid, drill 2 holes near the top.  Fit the clips around the tube & bolt to the inside of the lid.  Refit the lid back.

Most standard consumer units up to 250 mm wide will only require EBU1. For larger distribution boards, use EBU2 (300 mm wide) or EBU3 (505 mm wide).  This is the quickest and safest way of stopping a fire in consumer units.

DOWNLOADS

Please use the links below to download relevant information as PDF documents:

Technical Information

N/A

Application Instructions

N/A

COSHH Data

N/A

ORDER REFERENCES
